The CL-Series.

With the CL-Series we can see the most recent developments of d&b’s applied evolution at work.

Our mission was to equip the CCL System with meaningful features for those managing smaller venues and events. Then, determine how to include broadband directivity control with low frequency cardioid behaviour.

The first member of the CL-Series, CCL is a giant leap forward in a system that’s just the right size.

CCL System features.

  • A newly revised and patented cardioid principle
  • 2-way passive design to reduce system infrastructure complexity
  • Unique transducer configuration for unmatched acoustic performance and HF headroom (2 x 7" 2 x 5", 2 x 1.75")
  • Compact and light (18 kg/209x593x355 mm) for seamless installations and minimal logistic and implementation efforts
  • The industry standard and trusted d&b rigging and system management workflow

CCL System variants.

CCL8

Mobile specific compact cardioid line array loudspeaker for small to medium-scale sound reinforcement

  • Components LF: 2 x 7" + 2 x 5"; HF: 2 x 1.75"
  • Dispersion 80°
  • SPLmax 137 dB
  • Weight 17.6 kg / 38.8 lb
read more
CCL12

Mobile specific compact cardioid line array loudspeaker for small to medium-scale sound reinforcement

  • Components LF: 2 x 7" + 2 x 5"; HF: 2 x 1.75"
  • Dispersion 120°
  • SPLmax 136 dB
  • Weight 17.6 kg / 38.8 lb
read more

System overview.

CCL-SUB.

A dedicated flyable subwoofer available in both installation and mobile versions. A new patented passive cardioid design features a front 15” and a rear 10” driver configuration. New bass reflex and bandpass ports significantly reduce noise at very high sound pressure levels.

CCL-SUB

Mobile specific small to medium format flyable cardioid subwoofer

  • Components 1 x 15” + 1 x 10”
  • Dispersion Cardioid
  • SPLmax 132 dB
  • Weight 44.5 kg / 98 lb
read more

Amplifiers.

Milan-ready and able to power up to 8 CCL cabinets or 8 CL-SUBS or any combination of both to maximum output, without restrictions, under any load conditions.

Smart power for the CL-Series.

The D25 and 25D amplifiers drive the CL-Series with a modest reduction in output – up to -2 dB for CCL loudspeakers (depending on configuration and array length) and up to -3 dB for the CCL-SUB.

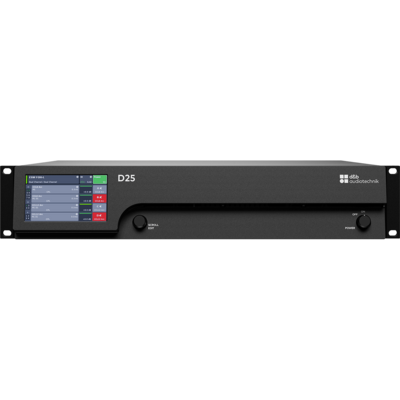

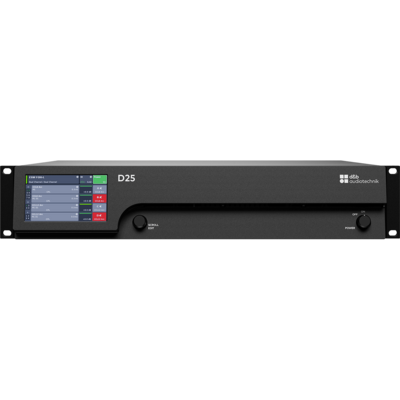

D25 amplifier

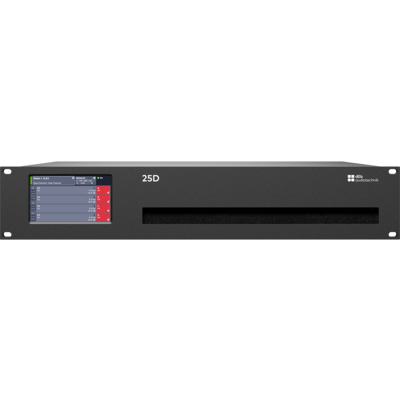

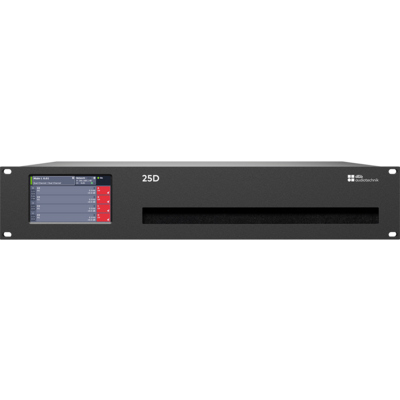

25D amplifier

Full power for the CL-Series.

Milan-ready and able to power up to 8 CCL cabinets or 8 CL-SUBS or any combination of both to maximum output, without restrictions, under any load conditions.

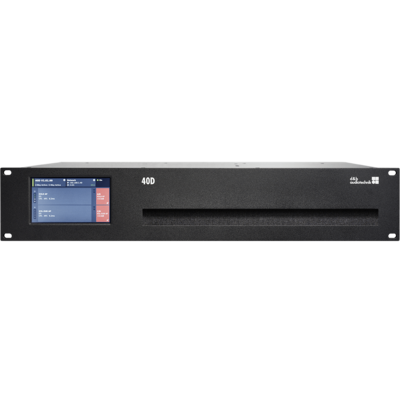

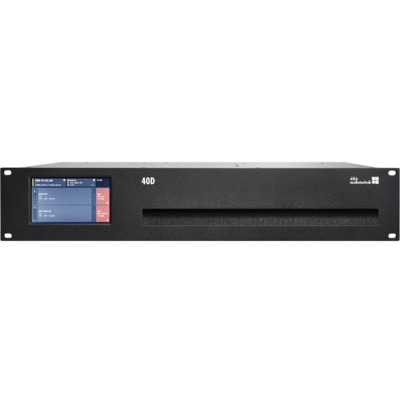

40D amplifier

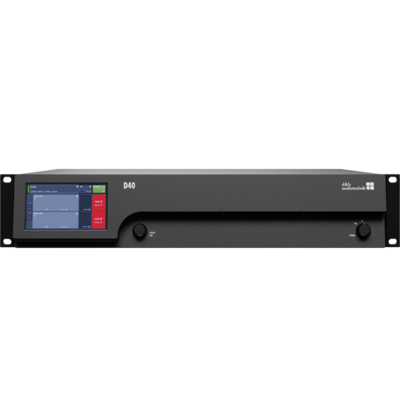

D40 amplifier

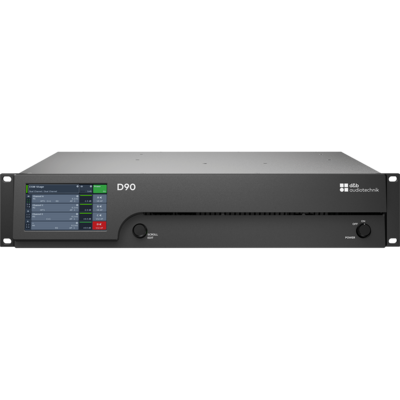

D90 amplifier

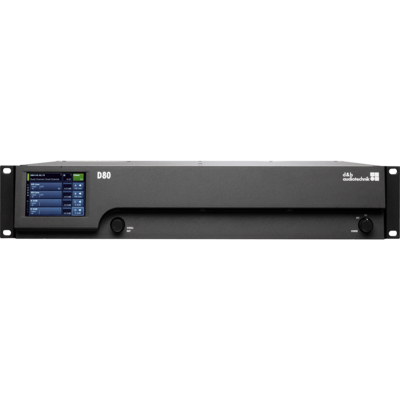

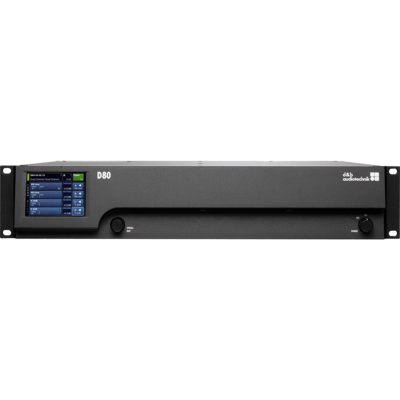

D80 amplifier

Settings are also available for the 30D and D20 amplifiers.

Benefits of cardioid directivity.

  • Clearer sound: Less low frequency sound bouncing off the side and rear walls means a more focused listening experience.
  • Quieter stages: Improves performance experience for artists and working environment technical crews.
  • Reduced feedback: Cardioid behaviour helps prevent microphones on stage from picking up unwanted sound.
  • Improved comprehensibility: Speech and vocals are easier to understand.
  • More art. Less Noise: Sound is directed towards the audience, and away from residential neighbours and other stages.
  • Enhanced audience experience: Delivering sound directly to the audience creates a more immersive and enjoyable listening experience.

CCL on the road.

Don't miss your chance to experience the CCL System as part of our CCL on the road event series.

show schedule
