44S loudspeaker

44S loudspeaker

Point sources

2-way ultra-compact flush mountable loudspeaker

  • Components LF: 2 x 4.5" / 1.25”
  • Dispersion 90° x 30° rotatable
  • SPLmax 123 dB
  • Weight 3.6 kg (8 lb)

Product description

The 44S is a passive 2-way design housing two 4.5” neodymium LF drivers and two 1.25" HF dome tweeters mounted on a rotatable CD horn thus providing a rotatable dispersion characteristic of 90° x 30°.

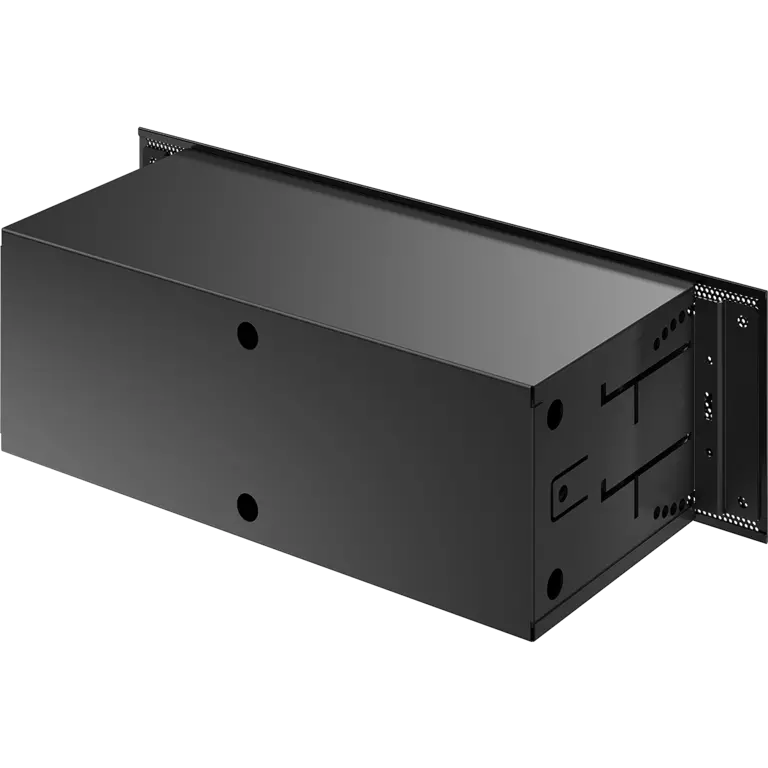

The optional d&b Z5427.000 44S back box can be used for flush mounting the loudspeaker into ceilings or walls, either in horizontal or vertical position. The asymmetric cabinet shape of the 44S allows the dispersion to be adjusted +/- 20° in five-degree increments within the back box.

The loudspeaker can be used as a stand-alone system or supplemented by actively driven d&b subwoofers.

The enclosure is injection moulded with an impact resistant paint finish. The front of the cabinet is protected by a rigid metal grill. Two M8 threaded inserts are incorporated in the back panel to connect to different rigging accessories. The loudspeaker cabinet and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours.

Amplifiers

The d&b 10D, 30D and D20 amplifiers are recommended to drive the 44S. The d&b D6, D80 and 40D can also be used.

10D

30D

D20

Architectural specifications for detailed project planning

Do you require architectural specifications? For a d&b system or a specific d&b Series? Here are the most important technical specifications ready for download.

System data
Frequency response (-5 dB standard)
90 Hz - 17 kHz
Frequency response (-5 dB CUT mode)
150 Hz - 17 kHz
Max. sound pressure1
with D6/10D
with D20/30D
with D80/40D

121 dB
123 dB
123 dB
Cabinets per amplifier channel
4
Loudspeaker data
Configuration
Compact universal high performance 2-way loudspeaker with an asymmetric cabinet shape
Nominal impedance
16 ohms
Power handling capacity (RMS/peak 10 ms)
150/500 W
Nominal dispersion angle (h x v)
90° x 30°
Components
2 x 4.5“ driver with neodymium magnet
2 x 1.25“ dome tweeter mounted on CD horn
Connections
4-pin Phoenix Euroblock and 2 x NL4 M
Dimensions / weight
Dimensions (H x W x D)
390 x 128 x 150 mm
480 x 140 x 180 mm with Backbox
15.3 x 5 x 5.9"
18.9 x 5.5 x 7.1" with Backbox
Weight
3.6 kg
6.2 kg with Backbox
8 lb
13.7 lb with Backbox

1 1 m, free field, SPL max peak test signal: pink noise with crest factor 4
