16C column loudspeaker

16C loudspeaker front

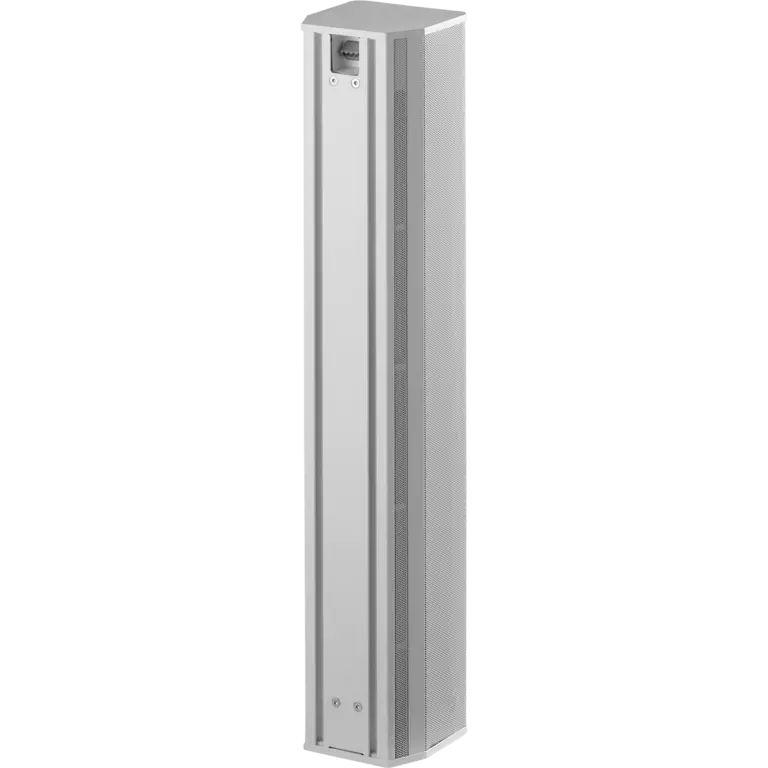

16C loudspeaker back
16C loudspeaker front
16C loudspeaker back

16C column loudspeaker

Column speakers

Installation specific cardioid column loudspeaker

  • Components 4 x 4"/0.75"
  • Dispersion 90° x 40°
  • max SPL 122 dB
  • Weight 5 kg / 11 lb

Product description

The 16C 2-way passive column loudspeaker is the smallest in the Series housing four 4” neodymium drivers and a 0.75” compression driver mounted on a CD horn. The HF horn has a nominal dispersion of 90° x 40° (h x v). The 4" drivers are arranged in a unique cardioid setup radiating through waveguide elements at the front and damped ports at the rear of the cabinet. This design provides a constant directivity pattern of 90° in the horizontal plane with a broadband attenuation to the rear of approximately 18 dB. A cardioid dispersion pattern produces minimal energy behind the loudspeaker, reducing reflections and resulting in balanced level distribution across the listening area while increasing gain before feedback when working with open microphones. The 16C loudspeaker enclosure is constructed from an extruded aluminium back and a metal baffle, while the front and sides of the cabinet are protected by a metal grill. The rear of the cabinet features continuous T-slot rails for mounting purposes, a single NL4 input and a 4-pole Phoenix combicon terminal connector. The xC-Series loudspeakers are available in white or black as standard, or can be provided with the Special Colour (SC) option that can be executed in all RAL colours.

Amplifiers

The d&b 10D, 30D and D6 amplifiers are recommended to drive the 16C. The d&b D20 and D80 can also be used.

10D

30D

D6

Architectural specifications for detailed project planning

Do you require architectural specifications? For a d&b system or a specific d&b Series? Here are the most important technical specifications ready for download.

System data
Frequency response (-5 dB standard)
110 Hz - 18 kHz
Max. sound pressure (1m, free field)1
122 dB
Cabinets per amplifier channel
3
Loudspeaker data
Configuration
Installation specific cardioid column loudspeaker
Power handling capacity (RMS/peak 10 ms)
100/500 W
Nominal dispersion angle (h x v)
90° x 40°
Components
4 x 4" driver with neodymium magnet
1 x 0.75" compression driver mounted on CD horn
Passive crossover network
Connections
4-pole Phoenix terminal
NL4
Dimensions / weight
Dimensions (H x W x D)
650 x 124.5 x 124 mm
25.6 x 4.9 x 4.88"
Weight
5 kg
11 lb

1 SPL max peak test signal: pink noise with crest factor 4

Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
