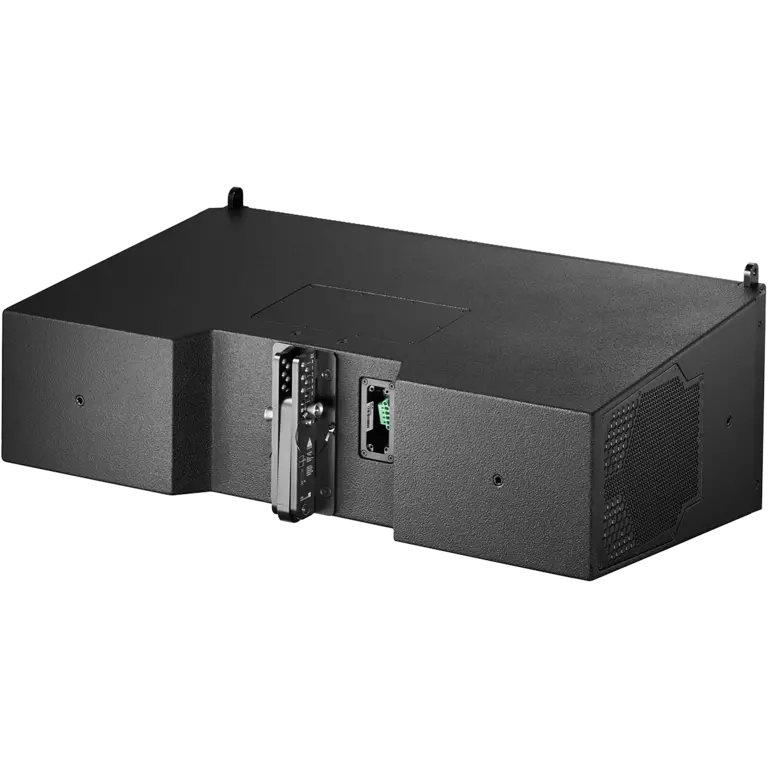

KSLi8 loudspeaker

KSLi8 loudspeaker

Installation specific medium to large format 3-way line array loudspeaker

  • Components LF: 2 x 10" + 2 x 8"; MF: 1 x 8"; HF: 2 x 1.4" exit compression driver with 3" coil
  • Dispersion 80°
  • SPLmax 145 dB
  • Weight 57 kg / 126 lb

Article number Z0790

Product description

The KSLi8 is the installation variant of the KSL8 line array loudspeaker for medium to large scale sound reinforcement. The KSLi8 line array module produces an 80° constant directivity dispersion pattern in the horizontal plane over the entire operating bandwidth. The KSLi8 houses two 10" neodymium forward facing LF drivers and two side firing 8" neodymium LF drivers. A coaxial mid-high section contains an MF horn with an 8" driver and two 1.4" exit, 3" voice coil HF compression drivers mounted to a dedicated wave shaping device. SL-Series flying hardware comes with a patented workflow with integrated tension rigging mode, allowing splay angles between cabinets from 0° to 10° in 1° increments. The loudspeakers are driven actively by two channels of an appropriate d&b amplifier. One channel powers the 10” LF drivers, the second channel powers all other components, which are passively crossed-over. This component geometry allows for a smooth crossover design with well-defined overlaps between adjacent bands providing consistent, even and very accurate horizontal dispersion. Due to the arrangement of the front and side firing LF drivers, seamless directivity control is maintained from the lowest frequencies the loudspeaker produces to above 18 kHz. Further expanding flexibility and catering for applications where smaller arrays are used and ArrayProcessing is not required, the KSLi8 includes the option to link two cabinets in Line or Arc mode. The cabinets are constructed from marine plywood and have an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front and side panels incorporate rigid metal grills backed by an acoustically transparent and water repellent fabric.

Amplifiers

The d&b 40D amplifier is required to drive the KSLi8. The D80 amplifier can also be used.

40D

Architectural specifications for detailed project planning

Do you require architectural specifications? For a d&b system or a specific d&b Series? Here are the most important technical specifications ready for download.

System data
Frequency response (-5 dB standard)
54 Hz - 18 kHz
Frequency response (-5 dB CUT mode)
75 Hz - 18 kHz
Max. sound pressure (1m, free field)1
with D80
145 dB
Cabinets per D80 (ArrayProcessing)
2
Cabinets per D80 (Line or Arc mode)
4
Loudspeaker data
Nominal impedance front LF
8 ohms
Nominal impedance side LF/MF/HF
8 ohms
Power handling capacity front LF (RMS/peak 10 ms)
450/1800 W
Power handling capacity side LF/MF/HF (RMS/peak 10 ms)
250/1000 W
Nominal dispersion angle (horizontal)
80 °
Splay angle settings
0 … 10° (1° increment)
Components
2 x 10" front LF driver
2 x 8" side LF driver
1 x 8" MF driver
2 x 1.4" exit compression driver with 3" voice coil
Passive crossover network
Connections
2 x NLT4 F/M / Phoenix
Dimensions / weight
Dimensions (H x W x D)
330 x 1000 x 572 mm
13 x 39.4 x 22.5"
Weight
57 kg
126 lb

1 SPLmax Broadband signal IEC 60268
