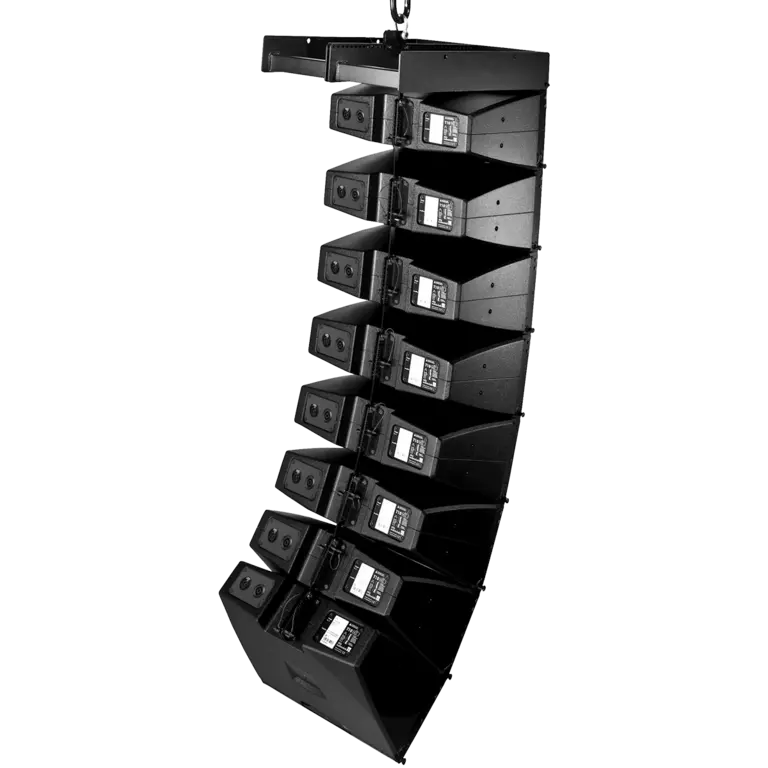

T10 loudspeaker back line array
T10 loudspeaker front
T10 loudspeaker back
T10 loudspeaker front 2
T10 loudspeaker front line array
T10 loudspeaker back line array

T10 loudspeaker

Line array / Point sources

2-way loudspeaker with rotatable horn for point and line source operation

  • Components 2 x 6.5"/1.4"
  • Dispersion 90° x 35° / 105°
  • max SPL 130 / 132 dB
  • Weight 11 kg / 24 lb

Product description

The T10 is a passive 2-way loudspeaker housing two 6.5" drivers positioned in a dipolar arrangement and a 1.4" HF compression driver and a passive crossover network. The T10 can be used both as a line array and as a high directivity point source loudspeaker. The HF driver is fitted to a unique waveguide horn producing vertical line source directivity with a 90° horizontal pattern that is maintained down to approximately 600 Hz. An acoustic lens placed in front of the horn widens horizontal dispersion to 105°, rotation of the horn by 90° relative to this produces an accurate point source dispersion, transforming a vertically oriented T10 into a stand-alone full range loudspeaker with 90° horizontal and 35° vertical directivity pattern. The T10 cabinet is constructed from polyurethane integral hard foam, incorporates integrated line array rigging hardware and has an impact resistant finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel.

Amplifiers

The d&b D20 and 30D amplifiers are recommended to drive the T10. The d&b D80, 10D and D6 can also be used.

D20

30D

Architectural specifications for detailed project planning

Do you require architectural specifications? For a d&b system or a specific d&b Series? Here are the most important technical specifications ready for download.

System data
Frequency response (-5 dB standard)
68 Hz - 18 kHz
Frequency response (-5 dB 100 Hz mode)
120 Hz - 18 kHz
Max. sound pressure (1m, free field)1
with D6/10D
with D20/30D
with D80

129 dB2 / 127 dB3
132 dB2 / 130 dB3
132 dB2 / 130 dB3
Cabinets per amplifier channel
4
Loudspeaker data
Configuration
2-way loudspeaker with rotatable horn for point and line source operation
Nominal impedance
16 Ω
Power handling capacity (RMS/peak 10 ms)
200 /800 W
Nominal dispersion angle (point source, h x v)
90° x 35°
Nominal dispersion angle (line source, horizontal)
105°
Components
2 x 6.5" driver with neodymium magnet
1.4" exit compression driver on rotatable waveguide
passive crossover network
Connections
2 x NLT4 F/M
optional 2 x EP5 or 2 x NL4
Dimensions / weight
Dimensions (H x W x D)
197 x 470 x 300 mm
7.8 x 18.5 x 11.8"
Weight
11 kg
24 lb

1 SPL max peak test signal: pink noise with crest factor 4
2 Line/Arc setup
3 Point source setup

Application information is presented for guidance only. d&b reserves the right to make any necessary changes to the products and the published specifications. As part of the ongoing development program d&b tries to maintain the highest degree of product compatibility.
